HackRF IQ Data Viewer 1.0.5

🎮 Games, CAD, 3D & science TC Lister Plugins Open source x64

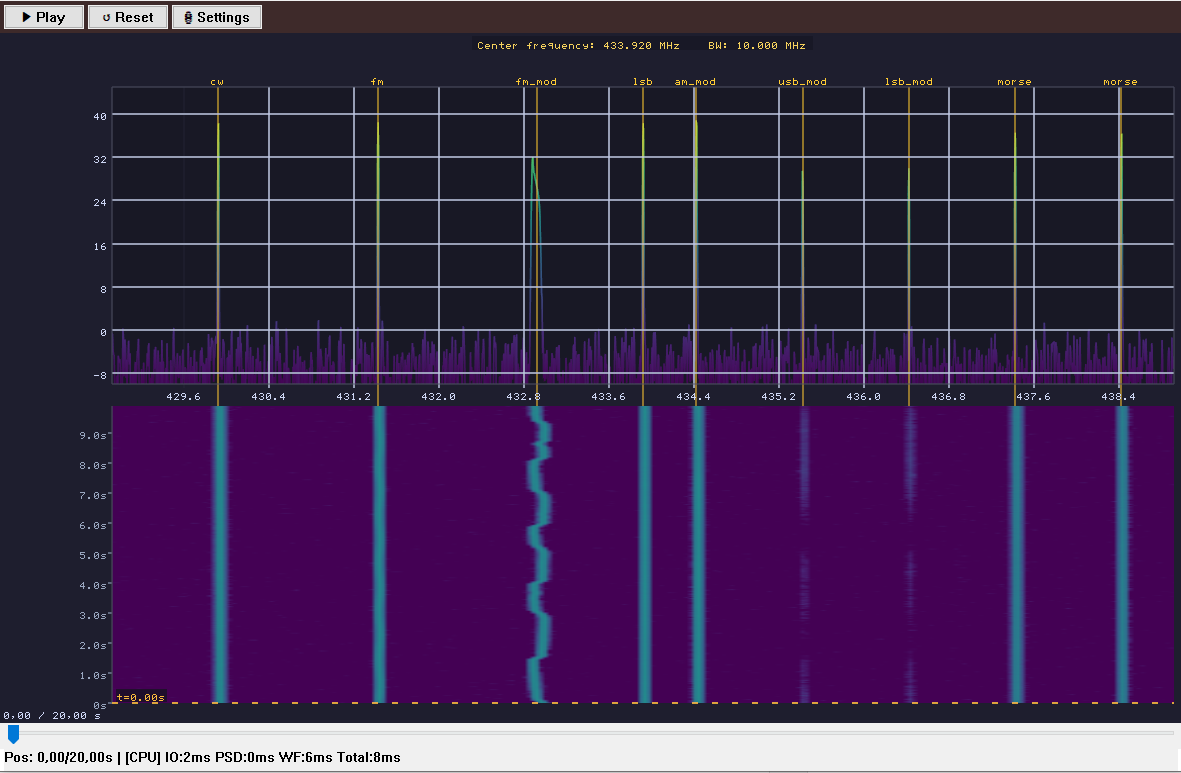

Screenshot: HackRF IQ Data Viewer

Description

A Total Commander WLX64 Lister plugin that displays HackRF IQ data files with real-time PSD spectrum and waterfall spectrogram visualization.
Features

PSD Spectrum: FFT-based power spectral density with Hann window and segment averaging
Waterfall Spectrogram: Scrolling waterfall display with Viridis colormap
CUDA Acceleration: Automatic GPU acceleration via cuFFT with CPU fallback
OpenGL Rendering: Hardware-accelerated rendering with MSAA anti-aliasing
Playback Controls: Play/Stop, Reset, position slider for scrubbing through files
Settings Dialog: Adjustable sample rate, center frequency, FFT sizes, dB range
Metadata Support: Reads .txt sidecar files for sample rate, center frequency, signal annotations
Thumbnail Preview: Quick PSD+waterfall preview in TC file panels
Multiple Formats: .iq, .raw, .cs8 (int8), .cs16 (int16), .cf32 (float32)

What’s new
fixes to waterfall
more file formats
