WLX GPXLister 4 TC 2.8.2
Description

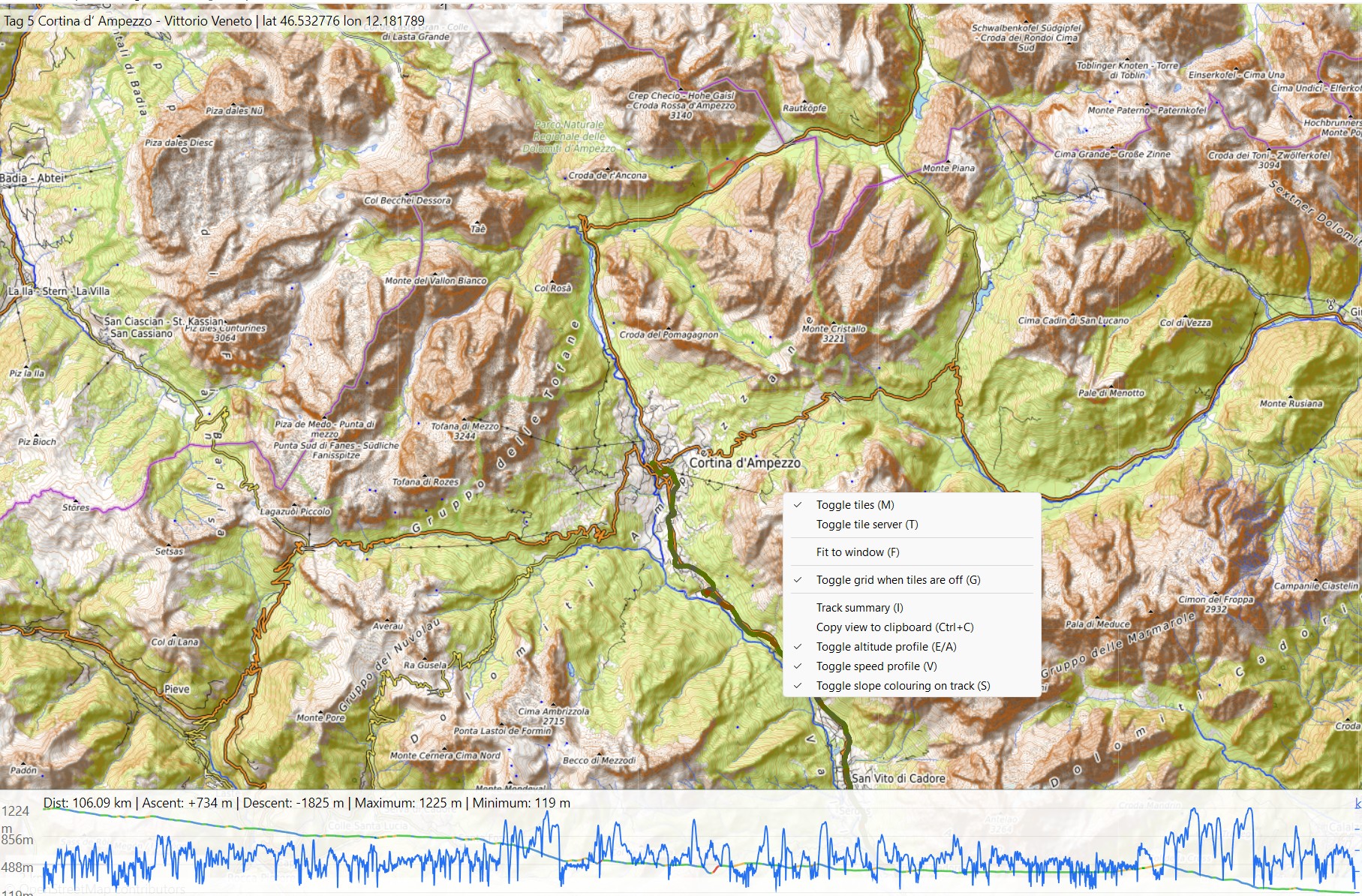

GPXLister is a Total Commander Lister plugin for viewing GPS track files. It displays GPX, FIT, KML, and KMZ tracks on an interactive map with Direct2D and 3D rendering, map tiles, satellite mode, elevation and speed profiles, multi-track selection, track summaries, and clipboard export of the current view.Requires Windows 10+. FIT/KML/KMZ support needs the included converter tools beside the plugin.
Github: https://github.com/jumpifequal/TotalCommander-GPXLister
What’s new
→ v2.8.2 - Minor ahestetic adjustments
• Added: new ini setting for hovering circle radius in logic pixels (DPI adapted) `hoverCircleRadius`, default value to 6.0. Valid range 2.0 - 30.0
• Fixed: red 2 px outline with 50% transparent white fill.
• Fixed: existing 2D size retained: 6 logical-pixel radius.
• Fixed: 3D now uses matching 6/2 CSS-pixel dimensions; CSS pixels and Direct2D DIPs scale with monitor DPI.
• Fixed: current 2D map center and zoom are now preserved when entering 3D.
• Fixed: terrain camera finalization remains active to avoid regressing hover alignment.
→ v2.8.1 - Reliable 3D hover synchronisation
• Added direct track-point hovering in the 3D view: moving over a 3D track updates the marker and altitude/speed profile guide, and the active hover point stays synchronised when switching between 2D and 3D.
• Fixed the 3D hover marker appearing only after a resize or camera drag; the mouse, marker, and altitude/speed profile guide are now aligned as soon as the 3D view opens.
• Kept the 3D marker and altitude/speed profile guide synchronised when hovering a profile or using downsampled tracks.
• Fixed stale or duplicate hover indicators after switching views or moving the pointer outside the 3D view.
• Fixed 3D hover timestamps so they match the source GPX date and local time shown in 2D.
• Kept the 3D marker fully visible across camera angles.
• Prevented isolated terrain-tile download failures from unexpectedly closing an otherwise working 3D session.
→ v2.8 - 3D map view
• Added an optional 3D view (D) context-menu action and D shortcut while keeping flat 2D as the startup view; the numeric 3 key remains available to Total Commander for Lister mode switching.
• Added 3d_model=1 for perspective rendering and 3d_model=2 for real DEM terrain; a missing or invalid setting is repaired to 2.
• Added free Terrarium terrain as the default provider and MapTiler Terrain RGB support through an API key.
• Kept track names, distance/elevation statistics, cursor elevation/speed/time, waypoints, track filtering, slope colouring, altitude/speed profiles, and profile-to-map point selection available in 3D.
• Added Google Earth-style combined navigation: drag/wheel/keyboard pan and zoom, right-drag or Ctrl/Shift+left-drag rotation/pitch, N north-up, U top-down, and F fit.
• Added safe automatic fallback to flat 2D when WebView2, local assets, or the terrain provider fail.
• Distribution now includes the local MapLibre web assets required by both 3D modes; only the Microsoft WebView2 Evergreen Runtime may need separate installation.
• Fixed 3D shortcut routing (including T/Shift+T) and added reliable Ctrl/Shift+left-drag rotation and pitch.
• Fixed black patches caused by overlapping invisible hover targets on dense 3D tracks.
• Added bounded 3D tile/worker caches and release of the 3D renderer when returning to 2D.
→ v2.7.1 - Reverse map style cycling
• Added Shift+T to cycle backward through the configured map styles, making Standard/Topo comparisons quicker when those styles are adjacent in mapTypeOrder.
• Updated distribution metadata to version 2.7.1.
→ v2.7 - Configurable map styles
• Added mapTypeOrder to control the startup map style, the T keyboard cycle, and the map context-menu order.
• Added named map style endpoints: standardTileEndpoint, satelliteTileEndpoint, and topoTileEndpoint.
• Replaced the context-menu tile-server toggle with a Map style submenu for direct style selection.
• Added Add track file... to append GPX/FIT/KML/KMZ files temporarily to the current view using the existing multi-track sidebar.
• Fixed tile-cache worker state so WinINet download handles remain thread-local during parallel tile downloads.
• Preserved legacy tileEndpoint as the old alias for the standard map style.
• Added safe mapTypeOrder repair for unknown, duplicate, empty, and backward-compatible standard-only configurations.
• Updated distribution metadata to version 2.7.
→ v2.6 - Clipboard copy and persistent speed profile
• Added Ctrl+C, Ctrl+Ins, and standard Lister copy support to copy the current Lister view to the clipboard as PNG, also available from the map context menu.
• Added persistent showSpeedProfile INI storage for the speed profile toggled with V or the context menu.
• Updated distribution metadata to version 2.6.
• Changed default tile rendering to opentopomap with hill shadows
• Added tiles topo map server rendering samples
• Added: new ini setting for hovering circle radius in logic pixels (DPI adapted) `hoverCircleRadius`, default value to 6.0. Valid range 2.0 - 30.0
• Fixed: red 2 px outline with 50% transparent white fill.
• Fixed: existing 2D size retained: 6 logical-pixel radius.
• Fixed: 3D now uses matching 6/2 CSS-pixel dimensions; CSS pixels and Direct2D DIPs scale with monitor DPI.
• Fixed: current 2D map center and zoom are now preserved when entering 3D.
• Fixed: terrain camera finalization remains active to avoid regressing hover alignment.
→ v2.8.1 - Reliable 3D hover synchronisation
• Added direct track-point hovering in the 3D view: moving over a 3D track updates the marker and altitude/speed profile guide, and the active hover point stays synchronised when switching between 2D and 3D.
• Fixed the 3D hover marker appearing only after a resize or camera drag; the mouse, marker, and altitude/speed profile guide are now aligned as soon as the 3D view opens.
• Kept the 3D marker and altitude/speed profile guide synchronised when hovering a profile or using downsampled tracks.
• Fixed stale or duplicate hover indicators after switching views or moving the pointer outside the 3D view.
• Fixed 3D hover timestamps so they match the source GPX date and local time shown in 2D.
• Kept the 3D marker fully visible across camera angles.
• Prevented isolated terrain-tile download failures from unexpectedly closing an otherwise working 3D session.
→ v2.8 - 3D map view
• Added an optional 3D view (D) context-menu action and D shortcut while keeping flat 2D as the startup view; the numeric 3 key remains available to Total Commander for Lister mode switching.
• Added 3d_model=1 for perspective rendering and 3d_model=2 for real DEM terrain; a missing or invalid setting is repaired to 2.
• Added free Terrarium terrain as the default provider and MapTiler Terrain RGB support through an API key.
• Kept track names, distance/elevation statistics, cursor elevation/speed/time, waypoints, track filtering, slope colouring, altitude/speed profiles, and profile-to-map point selection available in 3D.
• Added Google Earth-style combined navigation: drag/wheel/keyboard pan and zoom, right-drag or Ctrl/Shift+left-drag rotation/pitch, N north-up, U top-down, and F fit.
• Added safe automatic fallback to flat 2D when WebView2, local assets, or the terrain provider fail.
• Distribution now includes the local MapLibre web assets required by both 3D modes; only the Microsoft WebView2 Evergreen Runtime may need separate installation.
• Fixed 3D shortcut routing (including T/Shift+T) and added reliable Ctrl/Shift+left-drag rotation and pitch.
• Fixed black patches caused by overlapping invisible hover targets on dense 3D tracks.
• Added bounded 3D tile/worker caches and release of the 3D renderer when returning to 2D.
→ v2.7.1 - Reverse map style cycling
• Added Shift+T to cycle backward through the configured map styles, making Standard/Topo comparisons quicker when those styles are adjacent in mapTypeOrder.
• Updated distribution metadata to version 2.7.1.
→ v2.7 - Configurable map styles
• Added mapTypeOrder to control the startup map style, the T keyboard cycle, and the map context-menu order.
• Added named map style endpoints: standardTileEndpoint, satelliteTileEndpoint, and topoTileEndpoint.
• Replaced the context-menu tile-server toggle with a Map style submenu for direct style selection.
• Added Add track file... to append GPX/FIT/KML/KMZ files temporarily to the current view using the existing multi-track sidebar.
• Fixed tile-cache worker state so WinINet download handles remain thread-local during parallel tile downloads.
• Preserved legacy tileEndpoint as the old alias for the standard map style.
• Added safe mapTypeOrder repair for unknown, duplicate, empty, and backward-compatible standard-only configurations.
• Updated distribution metadata to version 2.7.
→ v2.6 - Clipboard copy and persistent speed profile
• Added Ctrl+C, Ctrl+Ins, and standard Lister copy support to copy the current Lister view to the clipboard as PNG, also available from the map context menu.
• Added persistent showSpeedProfile INI storage for the speed profile toggled with V or the context menu.
• Updated distribution metadata to version 2.6.
• Changed default tile rendering to opentopomap with hill shadows
• Added tiles topo map server rendering samples
